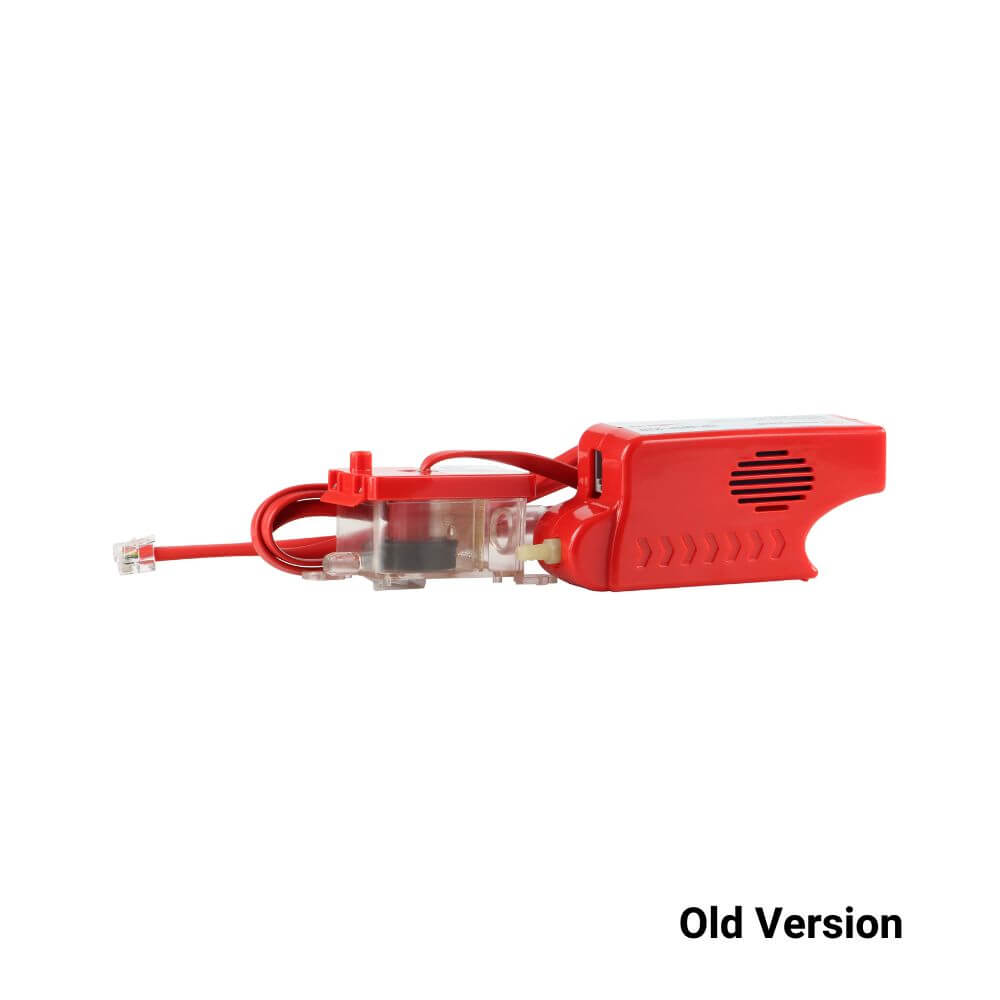

CP-MOP-220 – 100-240V AC 50/60Hz – 20L/hr – 18 dB(A) – Mini Condensate Pump
Part No. CP-MOP-220
Features:
- Dual Voltage Power Supply: 100-240V AC < 4W, 1Ph 50/60Hz.
- 3A volt-free Alarm wires, N/O N/C contacts
- Continuously rated
- Class II appliance
- Hall effect semi conductor level sensors
- Water flow rate: 5.3g (20 Lt. ) per hr @ 0 head
- Maximum water temp: 158§F (70§C)
- Maximum recommended head: 65ft (20m)
- Sound level: 18 dB(A) @ 1m & 8m head
- Suction lift: 6.5ft (2m)
- Discharge tube: 1/4″ (6mm) ID
- Includes 59″ (1.5m) clear drain hose and connection accessories
- CE Marked
- Thermally protected
- IP Protection: IPX1
- Fully potted
